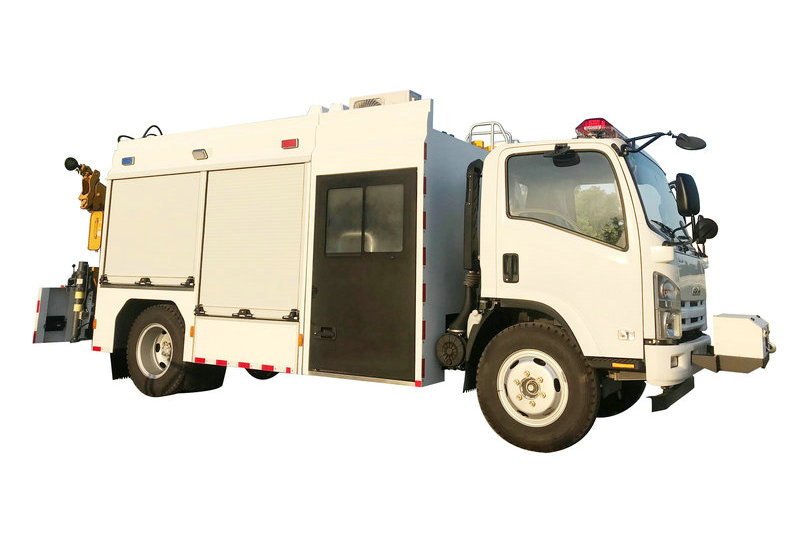

Lifting Light Fire Truck Parts Emergency Rescue Vehicle Tank Capacity < 3000L

Ask Lasest Price
Brand Name :	J&M
Model Number :	ISUZU QL1100A8MA1Y
Payment Terms :	L/C, T/T
Delivery Time :	30 Days

Add to Cart

Product Details
Company Profile

Lifting Light Fire Truck Parts Emergency Rescue Vehicle Tank Capacity < 3000L

Lifting Light Fire Truck Parts Emergency Rescue Vehicle Tank Capacity < 3000L

Quick Details

Place of Origin:: China

Size:: 7860*2300*3300mm

Type:: Rescue

Transmission Type:: Automatic

Condition:: New

Horsepower:: < 150hp

Emission Standard:: Euro 4, V

Drive Wheel:: 6x4

Fuel Type:: Diesel

Tank Capacity:: < 3000L

Product Name:: fire truck rescue vehicle

Total weight:: 10000kg

Pneumatic lifting LED light:: Max lifting height :7.5m power:4*1000W

Engine model:: ISUZU QL1100A8MA1Y

Tire:: 8.25-20, 8.25R20

Color:: White

Material:: Carbon steel,thickness: 4mm

Start-up mode:: Electrical starting

Rated power:: 10.0KVA:

product description；

Lifting Light Fire Truck Parts Emergency Rescue Vehicle Tank Capacity < 3000L

Name	Technical parameters and requirements
Dimension	7860×2300×3300mm
Total weight	10000kg
Max. net power	142kW
Max. travel speed	100km/h
Emission standard	Euro 4
No of crew	6
Power density	142/10=14.2
Approach angle	≥16°
Departure angle	≥13°
Max. pull of winch	4200kg
Max Lifting load	3000kg
Engine rated power	10KVA
Pneumatic lifting LED light	Max lifting height :7.5m,power:4×1000W

Chassis

1. Main parameters of chassis

Engine model	ISUZU QL1100A8MA1Y
Brand	Qingling Automobile Co., Ltd.
Emission Standard	V
Wheel base	4475mm
Tire	8.25-20, 8.25R20

3. crane

Model	SQ3.2ZK2
Max. lifting load	3000kg

4. winch

Model	9500LBS(24V)
Rated pulling force	4200kgf
Length of wire	Φ9.7mm*38m
Working voltage	24V

5. lifting light

Model	SG75-41000G
Power	4000w
Max height of lifting	7.5m
Horizontal rotation angle	380°
Vertical rotation angle	330°
Distribution Cabinet	One 380V input interface, one 380V output interface, and two 220V output interfaces can be used to power lighting and other equipment through a generator or through municipal electricity. There is overload protection system and monitoring instrument, each operation button is marked with obvious operation logo.

6. electric generator

Model	SHT11500
Brand	Sato Electric Co., Ltd.
Rated power	10.0KVA
Stand-by power	11.5KVA
Voltage	220V/380V
Start-up mode	Electrical starting
Equipped	One mobile coil 220V; one mobile coil 380V; grounding system

Our Services

Lifting Light Fire Truck Parts Emergency Rescue Vehicle Tank Capacity < 3000L
