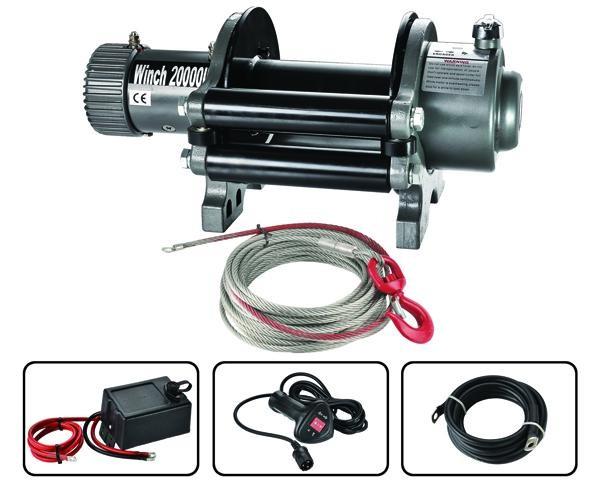

Remote Switch Electric Truck Winch 20000lbs CE approved S20000T

Specifications:

Rated line pull	20000LBS(9072kgs) single line
Motor	5.5KW/7.3HP 12V, 6.0KW/8.16HP 24V, Series Wound
Control	Remote switch,12ft(3.7m)lead
Gear train	3 Stage Planetary
Gear reduction ratio	375:1
Clutch	Sliding Ring Gear
Braking Action	Two-Way, Automatic In-The-Drum
Drum Dimensions	Φ99mmx201.5mm
Cable(Dia X L)	Φ13.5mmx30m
Fairlead	4-Way Roller Fairlead/Hawse Fairlead
Wireless Remote Control	Optional
Battery	Recommended:650CCA minimum for winching
Battery Leads	2 gauge,72"(183mm)
MAX Current(No Load)	≧75V(12V) ≧65A(24A)
MAX Current(Load)	≧465A(12V) ≧410A(24V)
Overall Dimensions	565x310x280mm
Winch packing size	60x38x40cm 53kgs(with out cable)
Cable packing size	46x46x15cm 24kgs
Mounting hole	254mmx114.3mm, 254x194.3mm
Mounting hole	M10x30 Outside Hexagon 8.8 grade 8 pieces
Export Markets︰	Europe ,Noth America, Austrilia,Asian region
Min Order︰	NEGOTIABLE
Standard Met︰	CE
