JMS100 Compressor Special For Shooting (Italian Version)
JMS100 Compressor Special For Shooting (Italian Version ) Describe
JMS100 Compressor Special For Shooting (Italian Version) is an
intelligent product, safe and reliable product.
The compressed air meets the EU EN12021 respiratory standard. It is
mainly used in gas detection, pressure detection and other fields.
It can also provide clean, safe and reliable gas source for other
industries.
It is composed of reliable and long service life components, with
compact structure, simple maintenance, easy to use and pure outlet
gas.
The air filling pump, as a kind of machine for increasing gas
pressure or conveying gas, can directly compress the free air to
the compressed air with gauge pressure of 225bar / 330bar.
After passing through the separator, filter and cooling in the
unit, the oil and impurities contained in the high-pressure air are
removed, and the clean and odorless gas pressure is discharged It
is a reliable high-pressure gas supply device when it is retracted
into a high-pressure gas cylinder or container.
JMS100 Compressor Special For Shooting (Italian Version ) Parameter
| Name | JMS100 compressor Special for shooting (Italian version) |
| Model | JMS100 |
| IP Protection level | IP55 |
| Tank capacity L | 0.35 |
| Drive | 220V Single phase motor |
| RPm r/min | 2800 |
| Displacement L/min | 100 |
| Power KW | 2.2 |
| Net weight Kg | 53 |
| Working medium | Air |
| Working pressure Mpa | 20-30 |
| Size mm | 640×490×805 |
| Compressor stages | Four stage compression |
| Oil / water separation | Final stage oil water separator |
| Lubricating oil model | BS750(food grade special oil) |
| Noise dB | ≤76 |
| Air quality | Comply with European EN 12021 "international compressed air
standard" |
| Final filter group | Purification and filtration of activated carbon, molecular sieve
and alumina |
| Control system | PLC control (automatic blowdown, automatic shutdown, automatic
pressure control) |

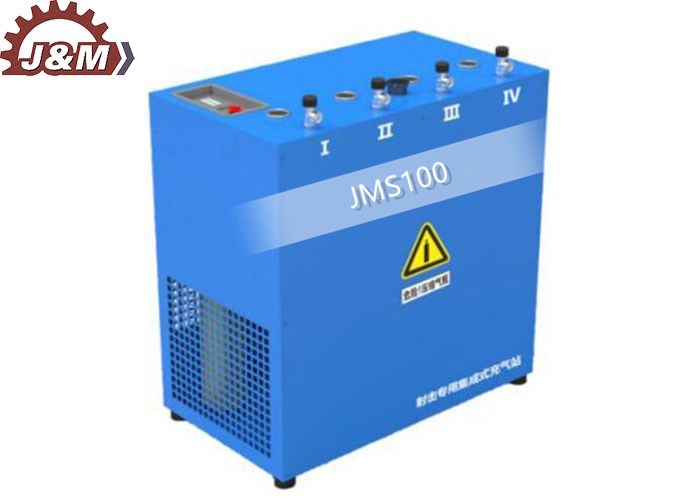

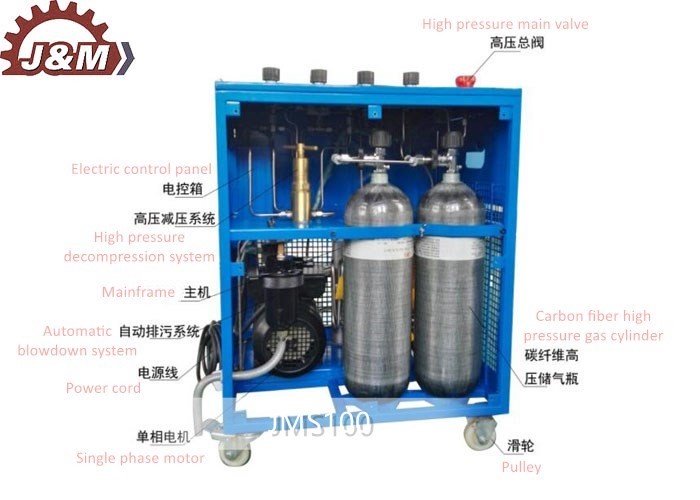

JMS100 Compressor Special For Shooting (Italian Version ) Real picture
JMS100 Compressor Special For Shooting (Italian Version ) Packaging & Delivery
- Packaging Details
- Plywood case
- Port
- Shanghai/Ningbo
- Lead Time :
- 30~40 days after order confimation
JMS100 Compressor Special For Shooting (Italian Version ) Details
