JM500L integrated gas filling station (German Type)
JM500L Integrated Gas Filling Station Describe
JM500L integrated gas filling station (German Type)

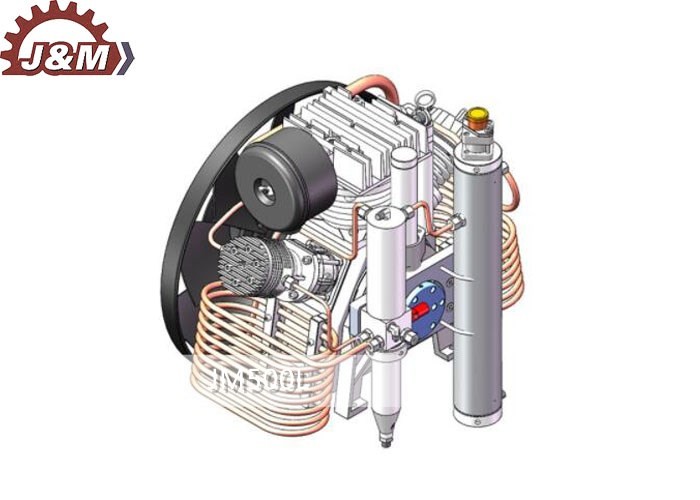

Main engine of filling pump
Splash lubrication
Lubricating oil: food grade special oil (American ruifubao bs750)
inlet filter
The filtered compressed air meets the standard of EN12021 breathing
air
Structure and style of filling pump
The filling pump is installed on the stable underframe. The
transmission mode is belt drive
The high pressure compressor has been filled with lubricating oil
and has passed the operation test of the whole machine
High pressure compressor with breathing air filter, using activated
carbon, molecular sieve, carbon monoxide adsorbent composed of
triple filtration system, to ensure that through
There is a cooler after each stage of compression
The temperature of the compressed gas after passing through the
cooler is about 10-15 ° C higher than the ambient temperature
After each stage of compression, there are intermediate water oil
separator (except the first stage), and the final stage water oil
separator
Each stage of compression is equipped with safety valve and final
safety valve
A pressure maintaining valve is set in front of the outlet of the
high-pressure compressor, which automatically opens at about 10MPa
to ensure the enhanced filtration of the compressed air

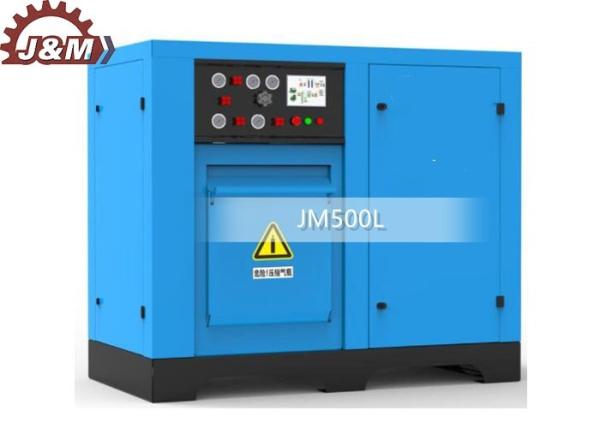

JM500L Integrated Gas Filling Station Real picture
JM500L Integrated Gas Filling Station Parameter
| Number | 018 |
| Model | JM500L |
| Drive | 380V Three phase motor |
| Power KW | 7.5 |
| RPm r/min | 1400 |
| IP Protection level | / |
| Net weight Kg | 972 |
| Displacement L/min | 400 |
| Working medium | Air |
| Working pressure Mpa | 20-30 |
| Compressor stages | Four stage compression |
| Tank capacity L | 2.8 |
| Lubricating oil model | BS750(food grade special oil) |
| Noise dB | ≤75 |

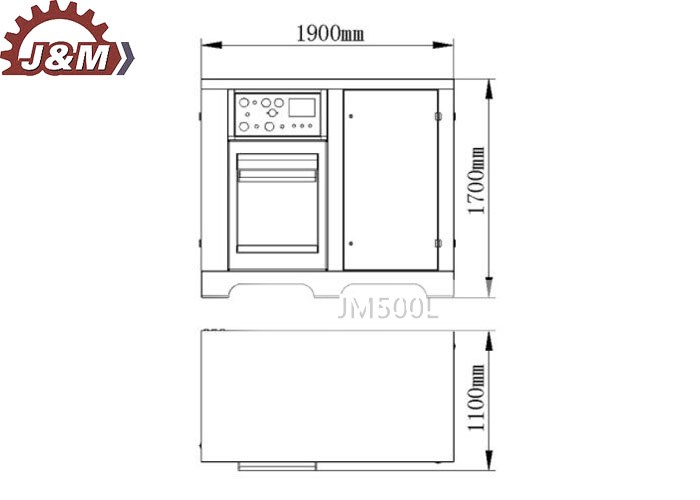

| Size mm | 1900×1100×1700 |
| Oil / water separation | Final stage oil water separator |
| Final filter group | Purification and filtration of activated carbon, molecular sieve
and alumina |
| Air quality | Accordance with the national GB18435-2007 standard for phreatic breathing gas and the international standard for breathing compressed air (EN12021) of Europe. |
| Integrated content | 2 sets of high-pressure gas storage tank container 40 / 35MPa,
high-pressure pressure reducing valve system, 3 sets of precision
filter system, inflatable explosion-proof box system, high-pressure
compressor system, PLC electrical control system, muffler device |
JM500L Integrated Gas Filling Station Packaging & Delivery
- Packaging Details
- Plywood case
- Port
- Shanghai/Ningbo
- Lead Time :
- 30~40 days after order confimation
